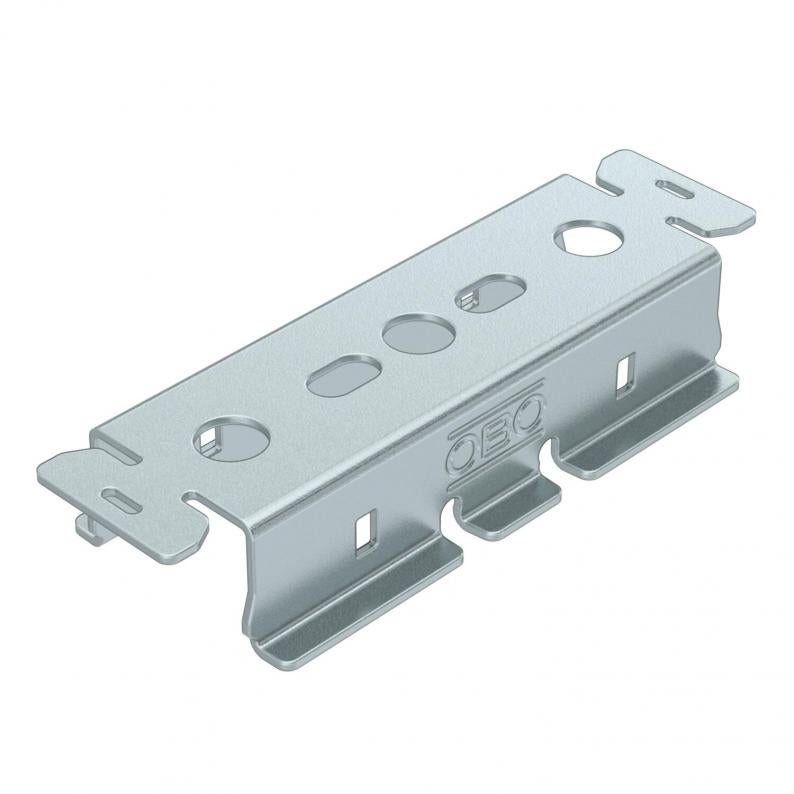

Support rail MagicFix
Type TSM 50 FS
|Item no. 6426300
|EAN 4012197519292
Item no. / Type
Garums
Smallest selling unit: 1 Gabals
1Gabals
Gabals
Description
Support rail for light cable trays, mesh cable trays and cable ladders for the creation of pendulum suspensions and centre suspensions. Tool-free fastening through clamp mount for mesh cable trays or additional quick connector MagicFix for trays and ladders. Alternatively, screw fastening possible Suspension with suspension strips Magic Fix. Tool-free fastening of the support rail on suspension strips through fastening straps.
Technical data

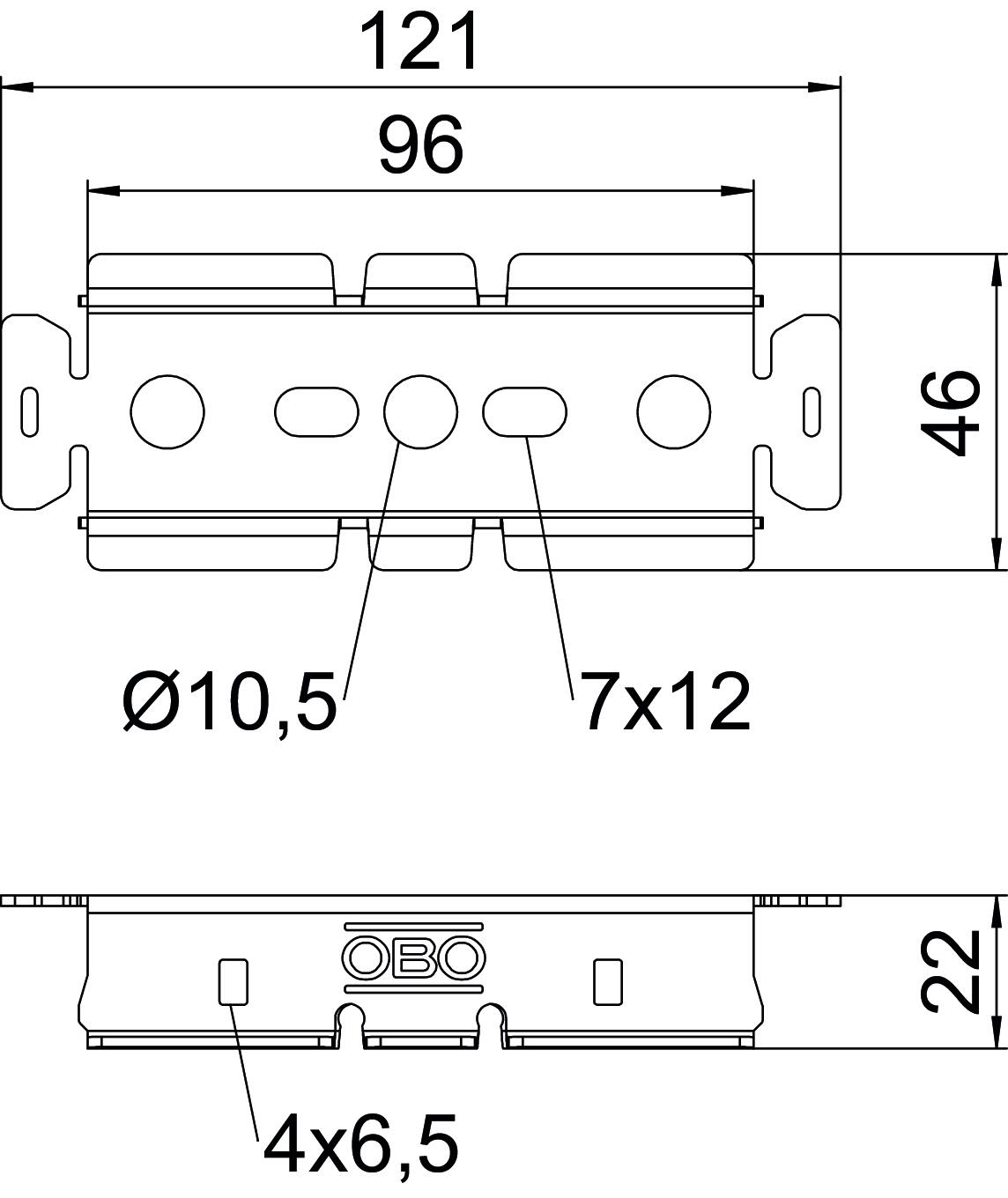

Izmēri
| Garums | 96 mm |
|---|---|
| Platums | 46 mm |
| Augstums | 22 mm |
| Izmērs L | 96 mm |
| Izmērs L2 | 121 mm |
| Maß sH | 7x12 mm |
Tehniskie dati
| Materiāla biezums | 1,5 mm |
|---|---|
| Piemērots režģveida renei | jā |
| Piemērots kabeļu trepēm | jā |
| Piemērots kabeļu renei | jā |
| Profila forma | Citi |
| Cauruma forma (ETIM) | Garens caurums |
| Cauruma diametrs | 10,5 mm |
| Piemērots profila formām | Citi |
| Izmērs | 22x45x121 |
| Virsma | cinkots |
| Materiāls | Tērauds |
| Krāsa | cinks |
Accessories
Montāžas piederumi
Sistēmas piederumi
Article
Type
Item no.
Amount
Downloads
0 selected
Lietošanas instrukcijas un palīgmateriāli (1)
Produkta attēli (2)
Variants
Type
Garums
Item no.
TSM 50 FS
96
6426300
TSM 100 FS
146
6426302
TSM 150 FS
196
6426304
TSM 200 FS
246
6426306
TSM 300 FS
346
6426308
TSM 400 FS
446
6426310
TSM 500 FS
546
6426312
TSM 600 FS
646
6426314
